論理回路デザイン
ArchiTek home page

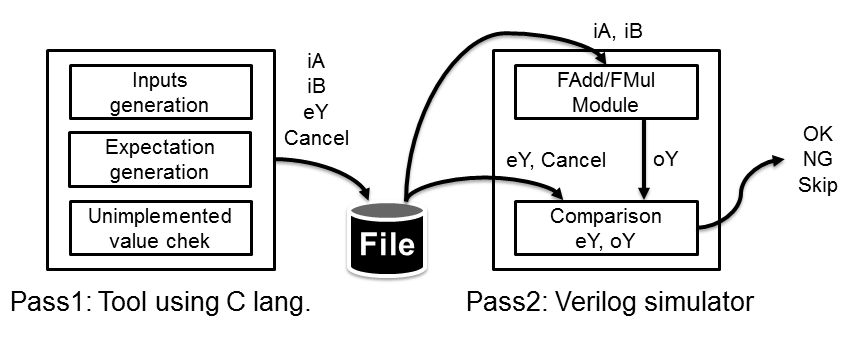

テストの考え方

テストモジュールの概要

テストモジュールサンプル(RTL)

/* **************************** MODULE PREAMBLE ********************************

        Copyright (c) 2011, ArchiTek
        This document constitutes confidential and proprietary information
        of ArchiTek. All rights reserved.
*/

// ***************************** MODULE HEADER *********************************

`timescale 1ps / 1ps

module test;

// ************************ PARAMETER DECLARATIONS *****************************

        parameter       D       = 1;
        parameter       DCLK    = 5000;
        parameter       DCLK2   = DCLK/2;

// ************************** LOCAL DECLARATIONS *******************************

        reg             clk;

        reg             reset_n;

// ****************************** MODULE BODY **********************************

// -----------------------------------------------------------------------------
initial begin clk=0; forever begin #(DCLK2) clk=~clk; end end

// -----------------------------------------------------------------------------
initial begin reset_n=0; #D reset_n=0; #(DCLK*3.5) reset_n=1; end

// -----------------------------------------------------------------------------
top top_0 (
        clk, reset_n
        );

// ************************** FUNCTIONS and TASKS ******************************

endmodule

// *****************************************************************************
/* **************************** MODULE PREAMBLE ********************************

        Copyright (c) 2011, ArchiTek
        This document constitutes confidential and proprietary information
        of ArchiTek. All rights reserved.
*/

// ***************************** MODULE HEADER *********************************

module top (
        clk,
        reset_n
        );

// ***************************** I/O DECLARATIONS ******************************

        input           clk;
        input           reset_n;

// ************************** LOCAL DECLARATIONS *******************************

        reg                     iVld;
        wire                    iStall;
        wire    [15:0]          iA;
        wire    [15:0]          iB;

        wire                    oVld;
        reg                     oStall;
        wire    [15:0]          oY;
        reg     [7:0]           oCnt;

        reg     [1:0]           rst;
        reg                     reset;

// ******************************** MODULE BODY ********************************

// -----------------------------------------------------------------------------
// Pipeline drive
always @(posedge clk)
        if (reset)
                iVld    <= #1 1'b0;
        else if (!iStall)
                iVld    <= #1 $random;

always @(posedge clk)
        if (reset)
                oStall  <= #1 1'b0;
        else
                oStall  <= #1 $random;

always @(posedge clk)
        if (reset)
                oCnt    <= #1 8'd0;
        else
                oCnt    <= #1 oCnt + (oVld & !oStall);

// -----------------------------------------------------------------------------
// Clock & Reset
// Generate a synchronized reset
always @(posedge clk or negedge reset_n)
        if (!reset_n)
                rst     <= #1 2'b11;
        else
                rst     <= #1 {rst[0], 1'b0};

always @(posedge clk or negedge reset_n)
        if (!reset_n)
                reset   <= #1 1'b1;
        else
                reset   <= #1 rst[1];

// -----------------------------------------------------------------------------
// FMul
fmul fmul_0 (
        .iVld                   (iVld),
        .iStall                 (iStall),
        .iA                     (iA),
        .iB                     (iB),
        .oVld                   (oVld),
        .oStall                 (oStall),
        .oY                     (oY),
        .reset                  (reset),
        .clk                    (clk)
        );

// -----------------------------------------------------------------------------
// Sequencer
ts ts_0 (
        .iVld                   (iVld),
        .iStall                 (iStall),
        .iA                     (iA),
        .iB                     (iB),
        .oVld                   (oVld),
        .oStall                 (oStall),
        .oY                     (oY),
        .reset                  (reset),
        .clk                    (clk)
        );

// **************************** FUNCTIONS and TASKS ****************************

endmodule

// *****************************************************************************
/* **************************** MODULE PREAMBLE ********************************

        Copyright (c) 2011, ArchiTek
        This document constitutes confidential and proprietary information
        of ArchiTek. All rights reserved.
*/

// ***************************** MODULE HEADER *********************************

module ts (
        iVld,
        iStall,
        iA,
        iB,
        oVld,
        oStall,
        oY,
        clk,
        reset
        );

// ***************************** I/O DECLARATIONS ******************************

        input                   iVld;
        input                   iStall;
        output  [15:0]          iA;
        output  [15:0]          iB;
        input                   oVld;
        input                   oStall;
        input   [15:0]          oY;
        input                   clk;
        input                   reset;

// ************************** LOCAL DECLARATIONS *******************************

        reg     [15:0]          iA;
        reg     [15:0]          iB;
        reg     [15:0]          expY;
        reg                     expC;
        wire    [15:0]          resultY;
        wire                    resultC;

        reg     [9:0]           iSc;
        reg     [9:0]           oSc;

        reg                     simEnd;
        wire                    doEnd;

        wire                    errY;

        wire                    iAlloc          = iVld & !iStall;
        wire                    oAlloc          = oVld & !oStall;

// ******************************** MODULE BODY ********************************

// Timing synchronizer for expectation
fifo #(18, 8) fifo_0 (
        .iVld                   (iAlloc),
        .iStall                 (),
        .iData                  ({simEnd, expC, expY}),
        .oVld                   (),
        .oStall                 (!oAlloc),
        .oData                  ({doEnd, resultC, resultY}),
        .reset                  (reset),
        .clk                    (clk)
        );

// Message out
always @(posedge clk)
        if (doEnd)
                $finish;
        else if (oAlloc)
                case (errY)
                        1'b0:   if (resultC)
                                        $display("Skip : oY=%4h\texpY=%4h\t@%d", oY, resultY, oSc);
                                else
                                        $display(" OK  : oY=%4h\texpY=%4h\t@%d", oY, resultY, oSc);
                        1'b1:
                                        $display(" NG  : oY=%4h\texpY=%4h\t@%d", oY, resultY, oSc);
                endcase

assign errY             = !resultC & (resultY != oY);

// Test in counter
always @(posedge clk)
        if (reset)
                iSc     <= #1 10'd0;
        else
                iSc     <= #1 iSc + iAlloc;

// Test out counter
always @(posedge clk)
        if (reset)
                oSc     <= #1 10'd0;
        else
                oSc     <= #1 oSc + oAlloc;

// Test sequence
always @(
        iSc
        ) begin

        simEnd          = 1'b0;

        case (iSc)

            0:          begin   iA      = 16'h0000;     // 0
                                iB      = 16'h0000;     // 0
                                expY    = 16'h0000;     // 0
                                expC    = 1'b0;
                        end

            1:          begin   iA      = 16'h3c10;     // 1.015625
                                iB      = 16'h3cf0;     // 1.234375
                                expY    = 16'h3d04;     // 1.253906
                                expC    = 1'b0;
                        end

            2:          begin   iA      = 16'h1c00;     // 2^-8
                                iB      = 16'h2000;     // 2^-7
                                expY    = 16'h0000;     // 0^-15 ->0
                                expC    = 1'b0;
                        end

            3:          begin   iA      = 16'hffff;     // -NaN
                                iB      = 16'hffff;     // -NaN
                                expY    = 16'h7fff;     // +NaN
                                expC    = 1'b1;         // Skip!
                        end

            4:          begin   iA      = 16'h2000;     // 2^-7
                                iB      = 16'h2000;     // 2^-7
                                expY    = 16'h0400;     // 2^-14
                                expC    = 1'b0;
                        end

            5:          begin   iA      = 16'h3db0;     // 1.421875
                                iB      = 16'h3da0;     // 1.406250
                                expY    = 16'h4000;     // 1.999896 ->2.0 (carry)
                                expC    = 1'b0;
                        end

            6:          begin   iA      = 16'h1400;     // 2^-10
                                iB      = 16'h1400;     // 2^-10
                                expY    = 16'h0000;     // 2^-20 ->0
                                expC    = 1'b0;
                        end

            7:          begin   iA      = 16'hfbff;     // -Max
                                iB      = 16'h7bff;     // +Max
                                expY    = 16'hfc00;     // -Infinity
                                expC    = 1'b1;
                        end

            8:          begin   iA      = 16'h3c01;     // 1+2^-10
                                iB      = 16'h3c01;     // 1+2^-10
                                expY    = 16'h3c02;     // 1+2^-9
                                expC    = 1'b0;
                        end

            9:          simEnd          = 1'b1;

        endcase
end

// **************************** FUNCTIONS and TASKS ****************************

endmodule

// *****************************************************************************


回路デザイン > 設計例 [浮動小数点] > テスト    次のページ(応用FPUその1)   このページのTOP ▲

[1]
faddも同じテストモジュールが使えます。このコードと前頁のコード、およびFIFOのコードをコピペするだけで動作します。お試しください。
[2]
ちなみに単精度なら、簡単にfloatからhexへの変換が可能です。例えば、floatからhexへの変換はこんな感じです。

main()
{
    float   i;
    int     *o = &i;

    printf("Input: ");
    scanf("%f", &i);

    printf("%8x\n", *o);
}
