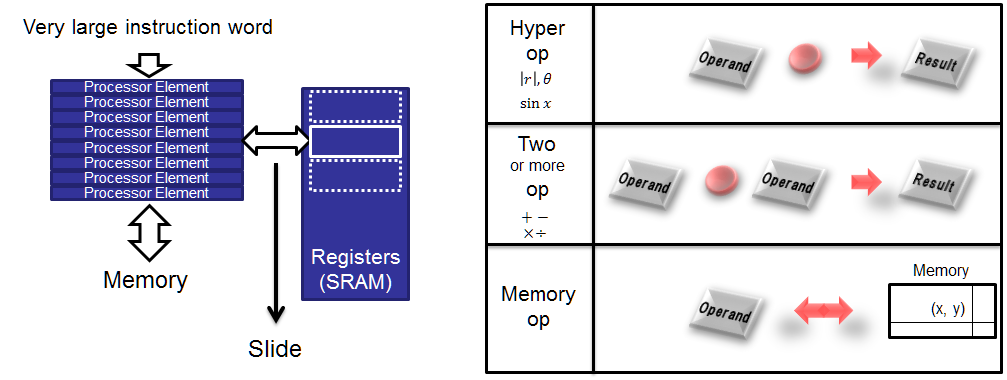

High performance GPU (P-CUBE)
- P-Cube is a new high performance GPU which is compact and easy to use.
- Operates independently as well as can be started from a processor which
does micro packet processing.
- Can perform integer as well as floating point calculations and each operator
is VLIW type and can operate simultaneously(maximum 10 operations / cycle).
- Supports trigonometric functions as well as high level function, achieves
throughput number of processor element / cycle independent of instruction.
- Reduction of development steps and simplification of programming can be achieved due to architecture whereby even if it is data dependent penalty does not arise.

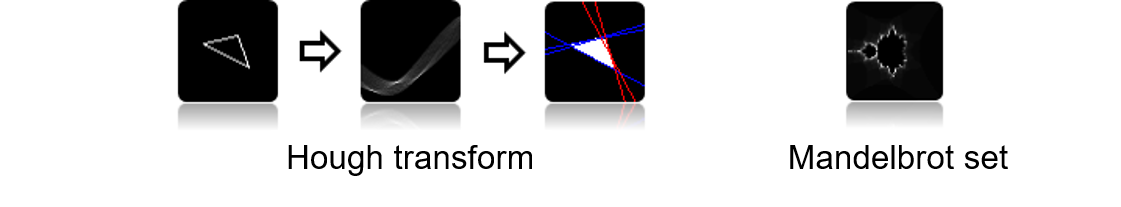

Sample Code

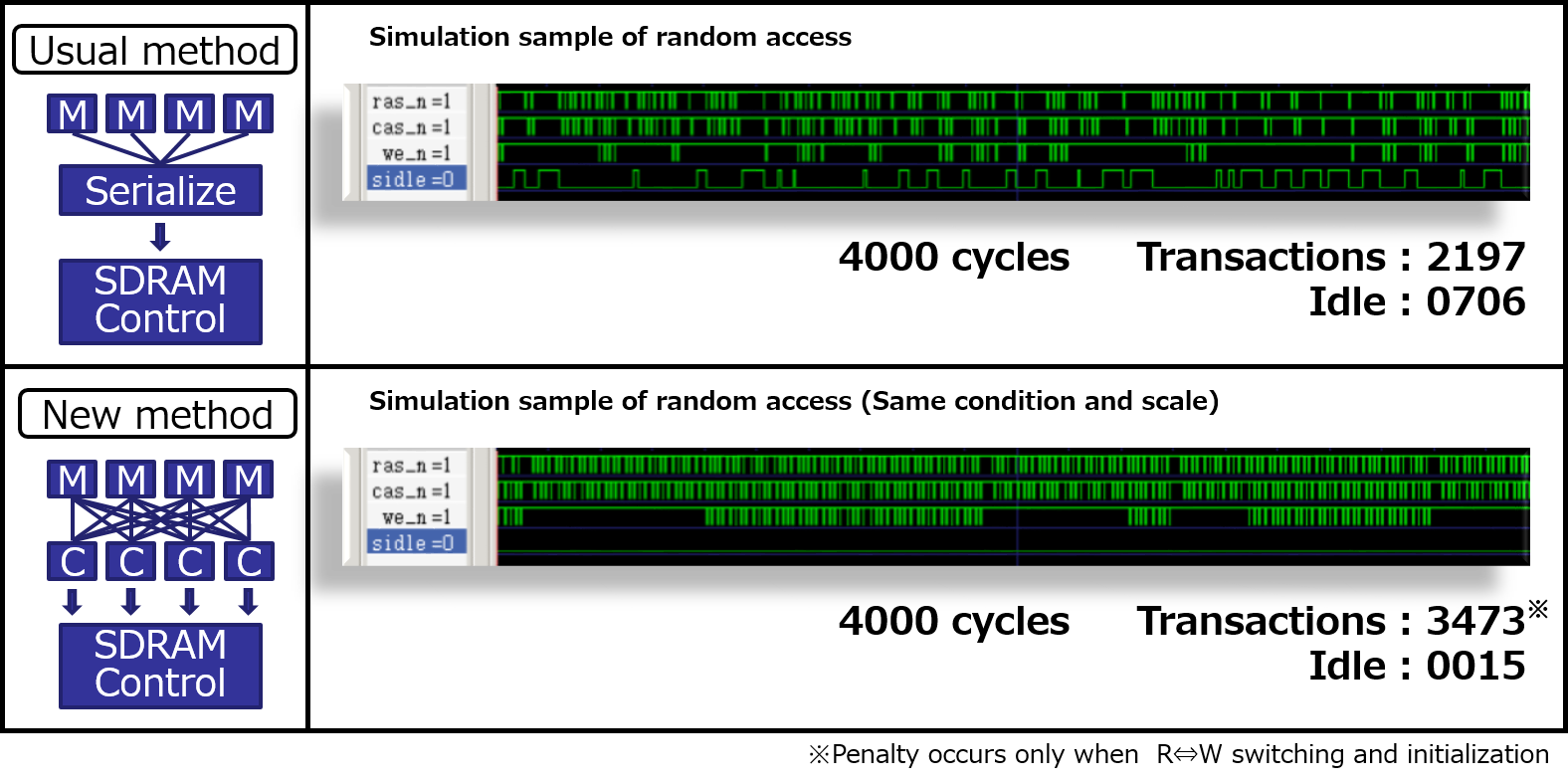

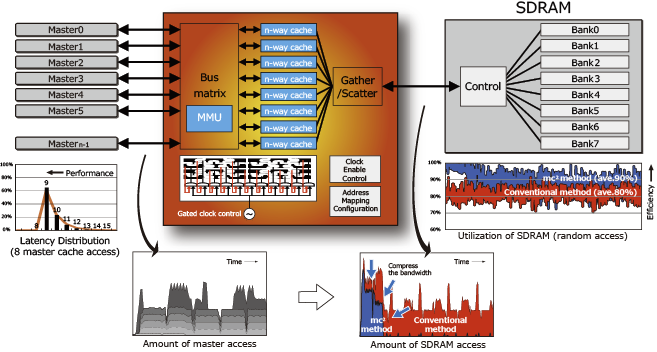

High efficiency Memory Controller (E=MC2)
- E=mc2 is a multimaster SDRAM controller for multibank cache using high performance interconnect.
- Implements coherence control and bandwidth control between masters and MMU supporting physical cache.
- Number of masters, cache parameters as well as address mapping is variable making it easy to use.
- Low latency, high throughput, low power consumption so well suited to unify memory system.

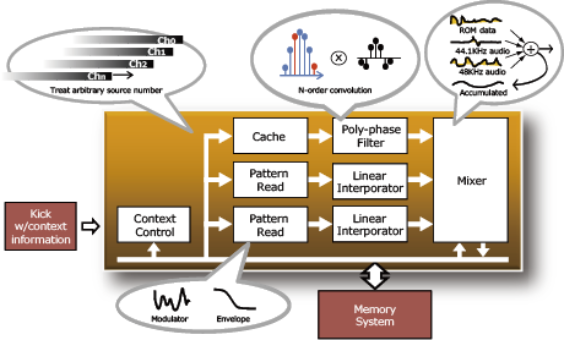

Audio Signal Processor (ASP)
- ASP is audio signal processing engine which can unify output of a multitude
of audio sources.
- Can perform sampling rate transform, factor, coefficient free filtering, arbitrary wavelet multiplication for an arbitrary number of sources.
- Using single precision floating point operation for all, and hence an extremely high precision result can be obtained.
